$179.95
$215.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

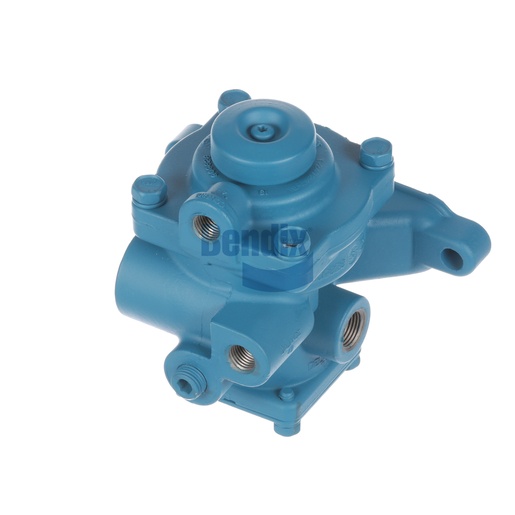

The CORELESS VALVE by Bendix is a critical component in your vehicle's braking system, designed to optimize performance and enhance safety. This valve is crafted with precision in Mexico and features a durable design that withstands extreme temperatures, from -40 °F to 200 °F. With multiple ports for various connections, it ensures efficient airflow and reliable braking action, crucial for heavy-duty applications. Weighing just 1.3 kg (2.79 lb), it is easy to install and integrates seamlessly into existing systems. Source One Parts Center is your trusted source for authentic Bendix OEM parts, ensuring you receive the best quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Width
113.0 mm (4.45 in)
Height
129.0 mm (5.08 in)
Length
147.0 mm (5.79 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
2.79 lb
