104179N

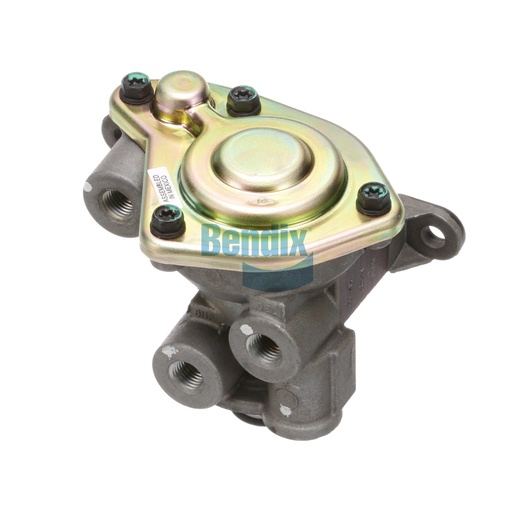

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake Valve is essential for maintaining proper operation of spring brake systems in commercial vehicles. Designed for durability, this valve weighs 0.9 kg and is engineered to handle the demanding conditions of heavy-duty applications. Its robust construction ensures reliable performance, helping to engage and release the spring brakes efficiently. The valve's design facilitates smooth operation and quick response times, enhancing overall vehicle safety. For those seeking high-quality Bendix components, Source One Parts Center is your best destination for genuine OEM parts and expert assistance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
72 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
1.92 lb
