288063N

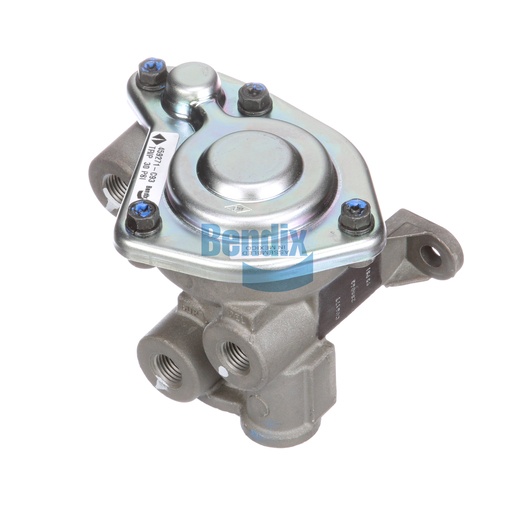

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve from Bendix is engineered to provide superior control and reliability for your truck's braking system. This valve is essential for the effective modulation of spring brakes, ensuring that your vehicle responds promptly to braking inputs. With a compact design and robust construction, it offers reliable performance in all conditions, featuring a maximum operating temperature of 200 °F and a minimum of -40 °F. The valve's precise engineering allows for seamless integration into your braking system, enhancing safety and performance. Its reliability makes it an ideal choice for both new installations and replacements. Trust Source One Parts Center for all your Bendix OEM parts needs, where quality and customer service come first.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
30 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
1.92 lb
