288063R

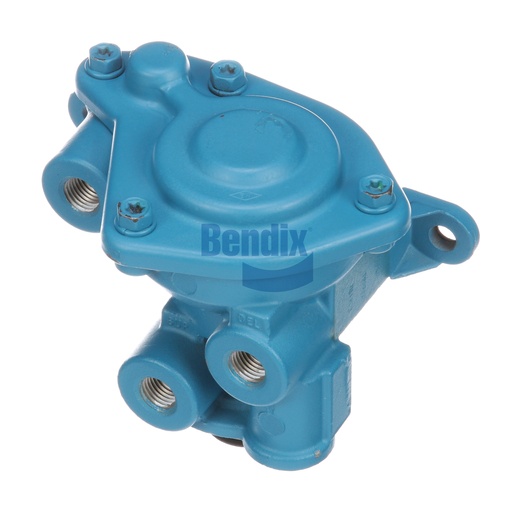

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve from Bendix is an essential component that regulates the operation of spring brakes in your commercial vehicle, ensuring effective stopping power. This valve is designed to handle high-pressure environments, with a maximum operating temperature of 200 °F and a minimum of -40 °F, making it suitable for a variety of conditions. With its robust design and compact size, this valve allows for seamless installation and reliable performance, ensuring that your braking system operates efficiently. Source One Parts Center is the premier choice for acquiring genuine Bendix OEM parts, guaranteeing quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
30 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
1.92 lb
