801138

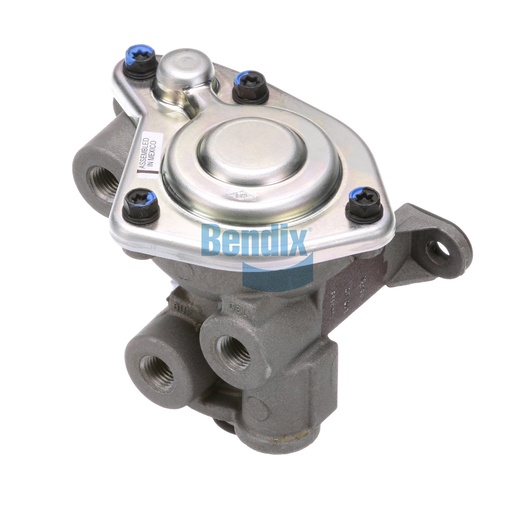

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve by Bendix is a crucial component in maintaining the safety and efficiency of your tractor's braking system. This valve operates under the strict regulatory compliance of FMVSS 121, ensuring that it meets high safety standards. With features like a supply port and control port designed for optimal flow and responsiveness, this valve helps to efficiently manage the spring brakes, allowing for safe and reliable braking under heavy loads. Its robust construction is engineered to withstand harsh conditions, ensuring longevity and dependable performance. The Spring Brake Valve’s compact design allows for easy installation in tight spaces, making it a favorite among mechanics and fleet managers alike. For those seeking quality and reliability, Source One Parts Center is the premier destination for genuine Bendix OEM parts that ensure your commercial vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
55 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
2.12 lb
