OR286364

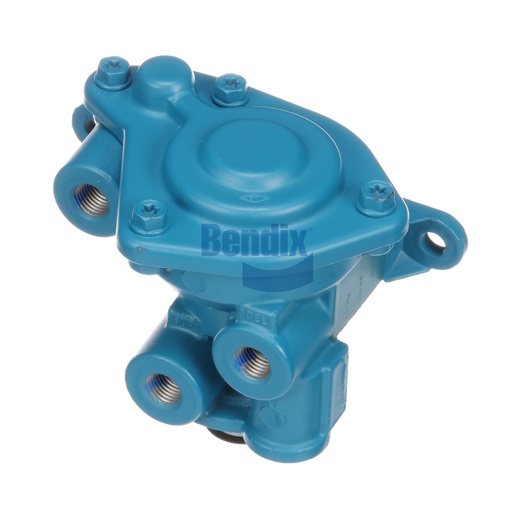

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coreless Valve is a vital component in tractor spring brake systems, engineered for optimal performance and reliability. Designed to regulate airflow efficiently, this valve plays a critical role in maintaining proper pressure and function within the braking system. Its robust design ensures that it can withstand the demanding conditions of commercial use, while its precise construction allows for seamless integration into existing systems. With features that enhance operational safety and efficiency, this valve is essential for maintaining effective braking performance. When looking for genuine Bendix OEM parts, Source One Parts Center is your best option, ensuring you receive quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Modulation Pressure
55 PSI
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
2.12 lb
