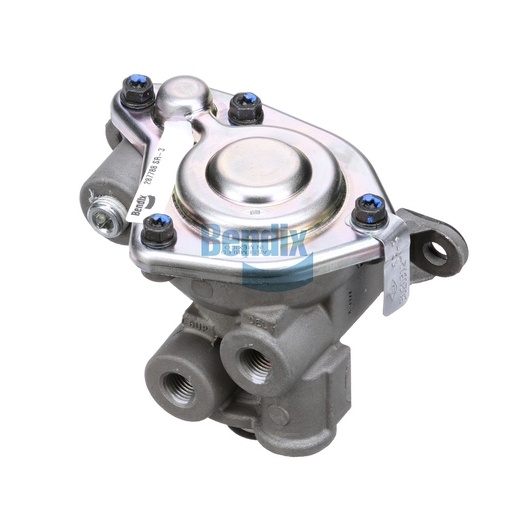

287788N
Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Inversion Valve is a critical component for controlling the spring brake functionality in tractor-trailer systems. With its durable construction and reliable operation in extreme conditions, this valve helps ensure precise control of brake applications. Designed to meet regulatory compliance standards, it plays a significant role in maintaining the safety and efficiency of your braking system. The valve’s compact design allows for easy installation and integration into existing systems, making it a practical choice for fleet maintenance. For all your Bendix OEM parts needs, trust Source One Parts Center, where quality and reliability are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT (Plugged)
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
2.25 lb
