5006195N

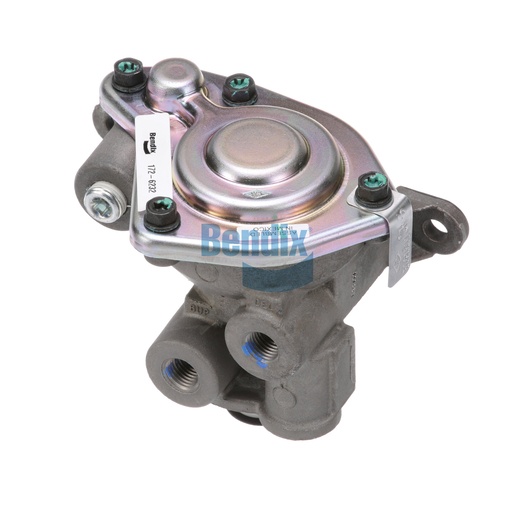

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Inversion Valve plays a critical role in the operation of tractor spring brake systems, ensuring that air pressure is effectively managed during braking. This valve is designed to be durable and reliable, handling the demands of heavy-duty applications. Weighing approximately 1.0 kg (2.25 lb) and featuring a compact design, it is easy to install in various vehicle configurations. The inversion valve operates efficiently in a temperature range of -40 °F to 200 °F, ensuring dependable performance across diverse conditions. By choosing genuine Bendix components like the Inversion Valve, you can trust that your vehicle's braking system will operate safely and effectively. For all your Bendix needs, Source One Parts Center is the best destination for genuine OEM parts that deliver quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT (Plugged)
Spring Brake Hold-Off Pressure
104 PSI
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
2.25 lb
