803112

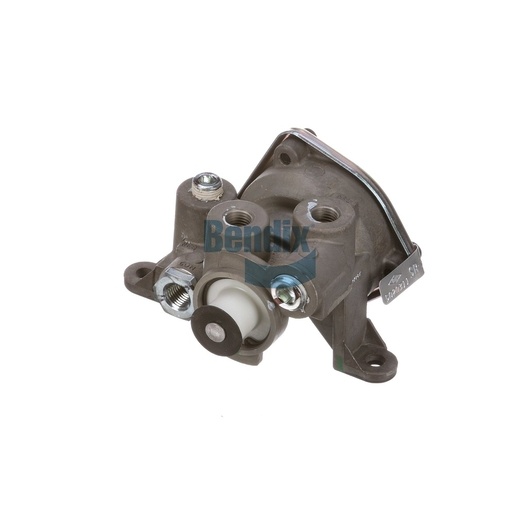

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve from Bendix is a key component in the tractor spring brake system, designed to enhance the functionality and reliability of commercial vehicle braking systems. This valve ensures proper engagement and disengagement of the spring brakes, providing optimal control and safety during operation. With a durable construction, the Inversion Valve is built to withstand harsh conditions, making it ideal for heavy-duty applications. Its efficient design allows for quick response times, enhancing overall braking performance. By utilizing the Inversion Valve, fleet operators can ensure that their vehicles maintain high safety standards and reliable braking capabilities. Source One Parts Center is the best destination for genuine Bendix OEM parts, offering the quality and reliability you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Primary Reservoir Port
1/4-18 NPT (Plugged)
Spring Brake Hold-Off Pressure
104 PSI
Height
109.5 mm (4.31 in)
Width
137.4 mm (5.41 in)
Maximum Operating Temperature
200 °F (93 °C)
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Mounting
Ø.345 IN (2x)
Weight
9.99 lb
