101112R
Spring Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

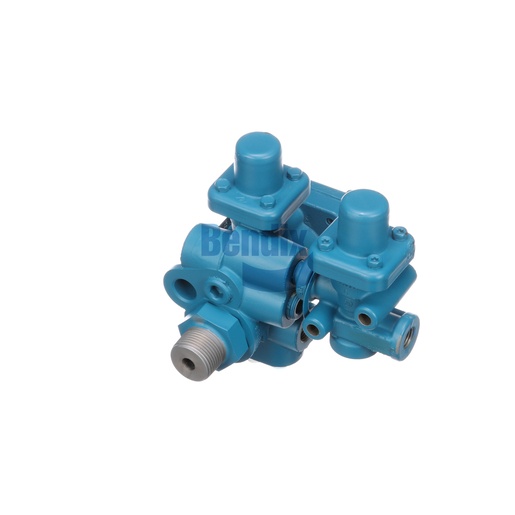

The Spring Brake Valve is a pivotal part of the tractor's braking system, engineered to ensure effective spring brake operation. This valve is designed with multiple ports for optimal air delivery, enhancing the efficiency of the braking system. Weighing 1.7 kg (3.84 lb), it features a robust construction that guarantees reliability under various conditions. The valve's design includes anti-compounding features, ensuring that service brakes and spring brakes operate seamlessly together. For reliable Bendix OEM parts that enhance your vehicle's braking performance, Source One Parts Center is your best source.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Service Reservoir Port 1
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT(with Pressure Protection Valve)
Height
140.7 mm (5.54 in)
Width
141.7 mm (5.58 in)
Length
154.9 mm (6.1 in)
Maximum Operating Temperature
200 °F (93 °C)
Spring Brake Reservoir Supply Port
3/4-14 NPT (with Check Valve)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
60 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Service Brake Priority
Anti-Compounding
Yes
Weight
3.84 lb
