103081R

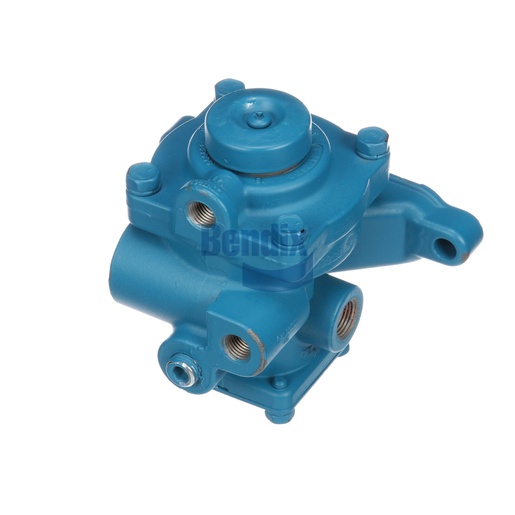

Spring Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve from Bendix is an essential component for ensuring optimal performance in your commercial vehicle's braking system. Designed for precision, this valve effectively regulates the application and release of spring brakes, providing you with reliable stopping power when you need it most. With features like anti-compounding protection and a robust construction that withstands extreme temperatures ranging from -40°F to 200°F, this valve minimizes the risk of brake failure, ensuring safety and efficiency on the road. Its multiple ports, including supply, balance, control, and delivery ports, offer versatile installation options, making it suitable for various tractor configurations. Whether you're maintaining a fleet or a single truck, investing in this high-quality spring brake valve enhances the overall reliability of your braking system. Source One Parts Center is your best choice for purchasing genuine Bendix OEM parts, ensuring that your vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
2.49 lb
