This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

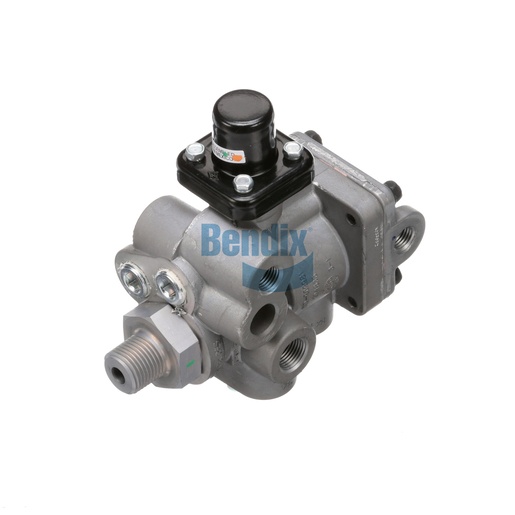

The Spring Brake Valve from Bendix is engineered to provide superior control for your truck's braking system, ensuring safety and reliability in critical situations. This valve prioritizes the spring brake function, allowing for effective air flow management that is essential for emergency braking scenarios. With a closing pressure of 70 PSI and operating temperatures ranging from -40°F to 200°F, it is built to perform in the most demanding environments. The versatile design includes multiple ports for easy connection to service reservoirs and trailers, ensuring a seamless integration with your vehicle's existing systems. Additionally, it complies with FMVSS 121 regulatory standards, guaranteeing its reliability and safety. For those in need of top-quality parts, Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring that you receive the highest quality for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Spring Brake Reservoir Supply Port
1/2-14 NPT (with Check Valve)
Service Reservoir Port 1
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Height
142.2 mm (5.6 in)
Length
154.7 mm (6.09 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
70 PSI
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Spring Brake Priority
Anti-Compounding
Yes
Weight
3 lb
