109618

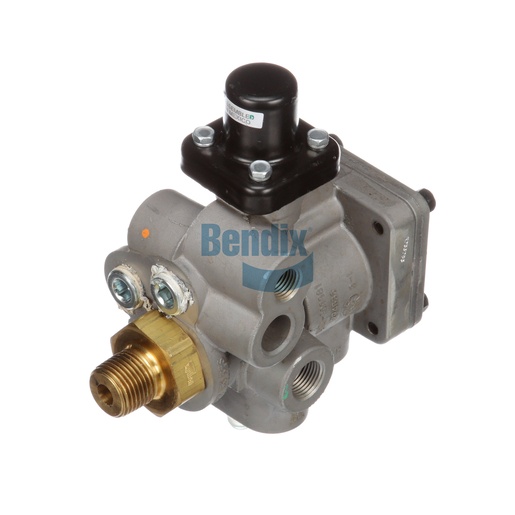

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve from Bendix is a vital part of the tractor spring brake system, designed to ensure effective and reliable brake operation. This valve controls the air supply to the spring brakes, allowing for quick engagement and release, which is crucial for safe driving. Weighing 2.91 lbs, the valve is built to endure harsh conditions, ensuring durability and longevity. Its design includes multiple ports for efficient air flow, comprehensive functionality, and easy installation. For superior performance and reliability, Source One Parts Center is the best choice when looking for genuine Bendix OEM parts, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Spring Brake Reservoir Supply Port
1/2-14 NPT (with Check Valve)
Service Reservoir Port 1
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Height
142.2 mm (5.6 in)
Length
142.2 mm (5.6 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
70 PSI
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
No
Thread Sealant
No Sealant
Brake Charging Priority
Spring Brake Priority
Weight
2.91 lb
