$319.95
$383.94

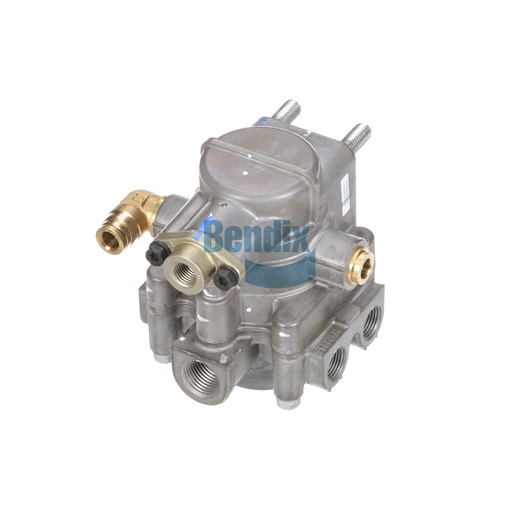

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This spring brake valve is designed to enhance the performance of your vehicle's braking system, providing reliable control and safety. With a compact design and weighing just 1.4 kg, it is engineered to meet the rigorous demands of commercial vehicle applications. The valve features anti-compounding technology, ensuring optimal brake operation and enhancing safety during critical moments. Its durable construction guarantees longevity, making it an excellent investment for fleet operators. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the ultimate destination for reliability and quality, offering a comprehensive selection of components tailored to your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.94 IN
VMRS
013-010-496: Valve - Modulating, Spring Brake
Supply Port
1/2-14 NPT
Park Control Port
1/4-18 NPT
Spring Brake Hold-Off Pressure
107 PSI
Height
124.0 mm (4.88 in)
Length
134.0 mm (5.28 in)
Width
137.0 mm (5.39 in)
Maximum Operating Temperature
200 °F (93 °C)
Balance Port
3/8 PTC
Control Port
3/8 PTC (90° Elbow)
Mounting
3/8-16 UNC-2A Stud (2x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Weight
2.99 lb
