$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

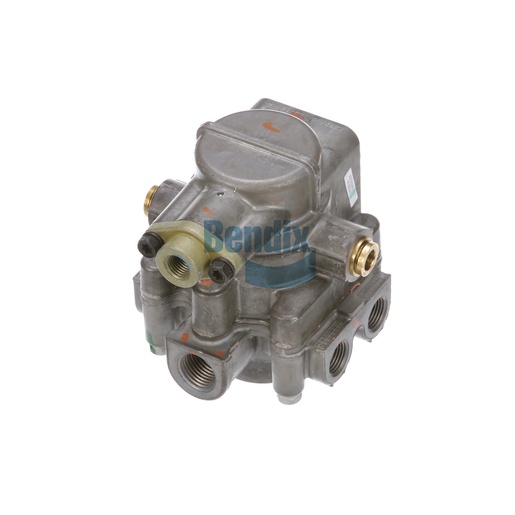

The Bendix Spring Brake Valve is essential for controlling the application of spring brakes on your truck, enhancing safety and performance. This valve features a robust design that ensures reliable operation in demanding conditions, providing precise control over your vehicle's braking system. Weighing 1.4 kg, it is compact yet durable, making it suitable for heavy-duty use. The valve is engineered to withstand varying pressure levels, ensuring optimal performance under all conditions. With this spring brake valve, you can expect enhanced safety and improved braking efficiency, which is crucial for commercial vehicles. For genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and reliability in your truck maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Supply Port
1/2-14 NPT
Park Control Port
1/4-18 NPT
Spring Brake Hold-Off Pressure
107 PSI
Maximum Operating Temperature
200 °F (93 °C)
Balance Port
3/8 PTC
Control Port
3/8 PTC
Mounting
3/8-16 UNC-3B (2x)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Weight
3.1 lb
