065326

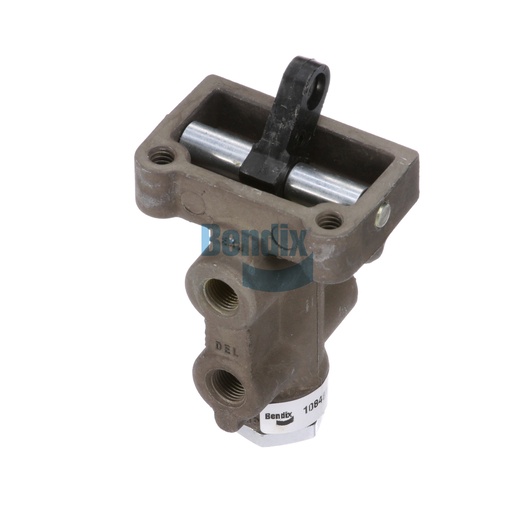

Control Valve
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Bendix Control Valve is a sophisticated component that plays a vital role in managing air pressure within your truck's braking system, ensuring precise control and enhanced safety. This valve, weighing 0.2 kg, features a robust design equipped for high-performance applications, making it ideal for heavy-duty trucks. Manufactured in Mexico, it adheres to stringent quality standards, providing reliable operation even in demanding conditions. The control valve's design allows for seamless air supply and exhaust, promoting efficient braking functionality and responsiveness. With high-temperature tolerance and durable construction, it ensures longevity and reduced maintenance costs. Integrating this control valve into your braking system not only improves operational safety but also enhances the overall driving experience. For those in need of genuine Bendix OEM parts, Source One Parts Center offers the best combination of quality and service, ensuring your vehicle remains at peak performance.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Mounting
1/4-20 UNC-3B (2x)
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Length
46.7 mm (1.84 in)
Width
55.6 mm (2.19 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
94.7 mm (3.73 in)
Actuator Finish
Black
Actuator Style
Lever/Linkage
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Lever Position (Initial)
Toward Exhaust
Weight
0.49 lb
