$179.95
$215.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

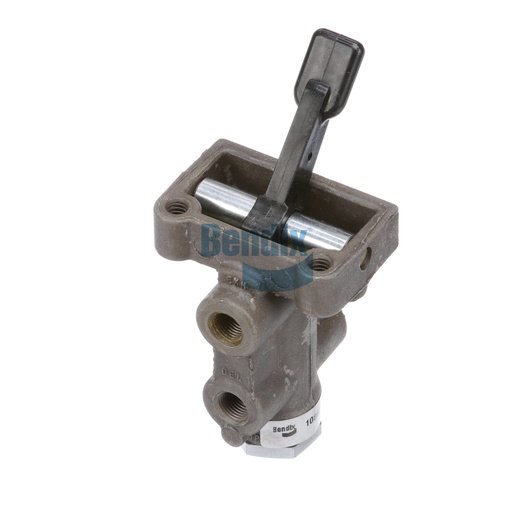

The Control Valve is a pivotal component in the braking system of commercial vehicles, designed to manage the air pressure distribution effectively. Weighing just 0.2 kg, this lightweight yet robust valve is manufactured in Mexico to meet high standards of quality and reliability. Its sophisticated design ensures precise control of air flow, optimizing brake performance and enhancing safety on the road. With a total travel of 75° and a flipper actuator style, this valve guarantees responsive operation, crucial for commercial vehicles operating under various conditions. The easy installation process further elevates its appeal, making it a preferred choice for fleet maintenance. When it comes to sourcing quality components, Source One Parts Center is the best place for genuine Bendix OEM parts, ensuring you receive reliable and durable products for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-010-477: Flipper Valve
Mounting
1/4-20 UNC-3B (2x)
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Height
114.6 mm (4.51 in)
Product Type
2-Position Valve
Length
55.1 mm (2.17 in)
Width
55.6 mm (2.19 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Black
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Lever Position (Initial)
Toward Exhaust
Weight
0.49 lb
