$299.95
$359.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

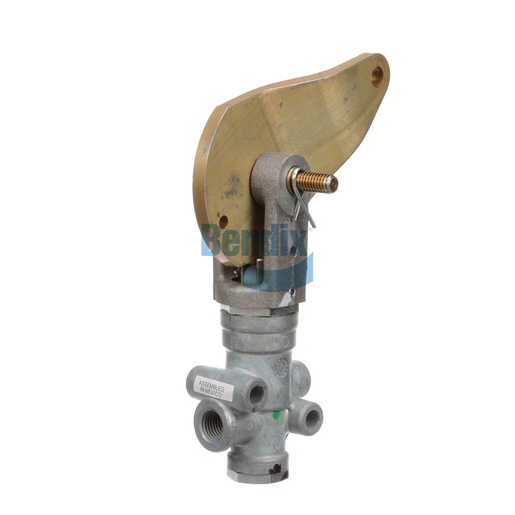

The Control Valve from Bendix is an essential component designed for the efficient operation of trailer brakes, ensuring reliable performance in various driving conditions. Weighing 0.6 kg (1.23 lb), this valve is engineered for quick response times, contributing to enhanced braking safety and control. Its robust design allows it to withstand harsh environments, minimizing the risk of failure. This valve regulates air flow to the trailer brakes, providing precise control over braking force and ensuring that your vehicle responds effectively under load. By integrating this control valve into your braking system, you enhance overall safety and operational efficiency, making it a vital part of your commercial vehicle's setup. For sourcing genuine Bendix OEM parts, Source One Parts Center is your top destination, ensuring access to high-quality components that meet the demands of commercial applications.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Cam Offset
.560 IN
VMRS
013-003-060: Valve - Parking Brake, Remote
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Height
178.3 mm (7.02 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120
Length
94.0 mm (3.7 in)
Actuator Material
Aluminum
Actuator Style
Cam
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Finish
Trivalent Chromate
Mounting
Ø .28 IN (2x)
Cam Connection Hole Size
Ø .330 IN
Weight
1.23 lb
