065418

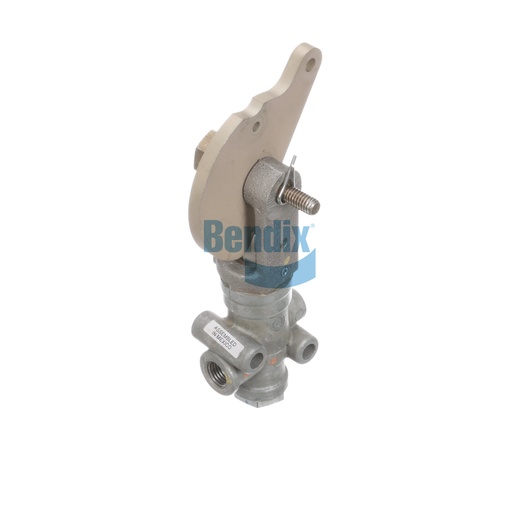

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a crucial component in your vehicle's air brake system, designed to manage airflow and pressure effectively. This valve plays a significant role in controlling the operation of the braking system, ensuring smooth and reliable performance under various conditions. With its lightweight design, weighing just 0.6 kg, it is engineered for both durability and efficiency. The control valve's innovative design minimizes the risk of leaks and enhances overall system performance, making it an essential part of any commercial vehicle's braking system. By choosing Bendix, you ensure that your vehicle is equipped with top-quality components that prioritize safety. Source One Parts Center is the premier destination for acquiring genuine Bendix OEM parts, ensuring that you receive products that meet rigorous quality standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-003-060: Valve - Parking Brake, Remote
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Height
157.5 mm (6.2 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
61.0 mm (2.4 in)
Length
81.5 mm (3.21 in)
Harmonized System (HS) Code
848120
Actuator Material
Aluminum
Actuator Style
Cam
Country of Origin
Mexico
Cam Offset
No Offset
Mechanism Type
Positioning
Actuator Finish
Trivalent Chromate
Cam Connection Hole Size
Ø .250 IN
Mounting
Ø .28 IN (2x)
Weight
1.23 lb
