$379.95
$455.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

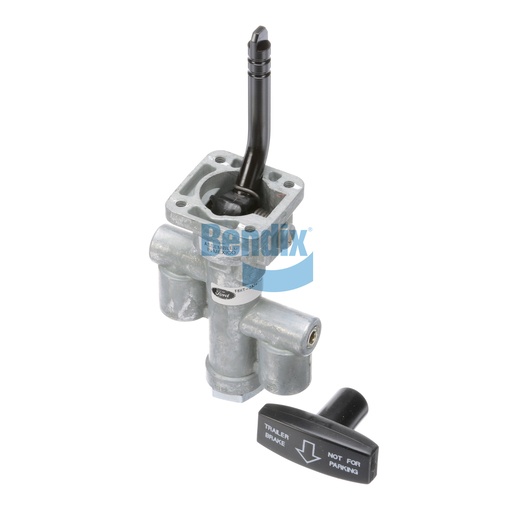

The Bendix trailer control valve is an important component for managing air pressure in trailer braking systems, ensuring optimal performance and safety. Designed to handle a range of operating conditions, this valve features a robust aluminum handle and a zinc body for enhanced durability. With a total handle travel of 55 degrees and a graduating pressure range of 0 - 85 PSI, it allows for precise control over the braking system. Weighing 0.8 kg (1.68 lb), it offers a compact and efficient solution for air brake management. Trust Source One Parts Center for genuine Bendix OEM parts, guaranteeing quality and performance for your trailer's braking needs.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 85 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Total Handle Travel
55°
Harmonized System (HS) Code
848120
Final Delivery Pressure
85 ± 10 PSI
Handle Material
Aluminum (Black Epoxy / Laquer)
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Dash Mount
Country of Origin
Mexico
Product Type
Self-Return (without Detent)
Knob / Handle Text
Trailer Brake | Not for Parking
Body Material
Zinc
Weight
1.68 lb
