065533

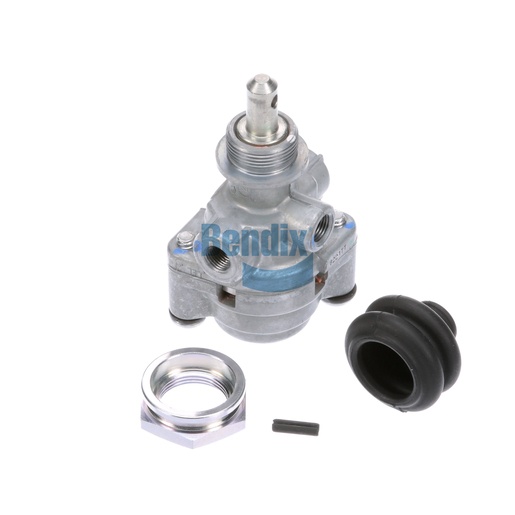

Control Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$224.95
$269.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an essential component for managing air flow in your vehicle's braking system, ensuring optimal performance and safety. With its advanced design, this valve helps regulate air pressure during braking, providing smooth and responsive control. The compact size and lightweight construction make it easy to install, while its durable materials ensure reliable operation even under the toughest conditions. This control valve is particularly beneficial for enhancing the efficiency of air brake systems in commercial vehicles, making it a must-have for fleet maintenance. Trust Source One Parts Center for all your Bendix OEM parts needs, where quality and reliability come standard for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
