065535

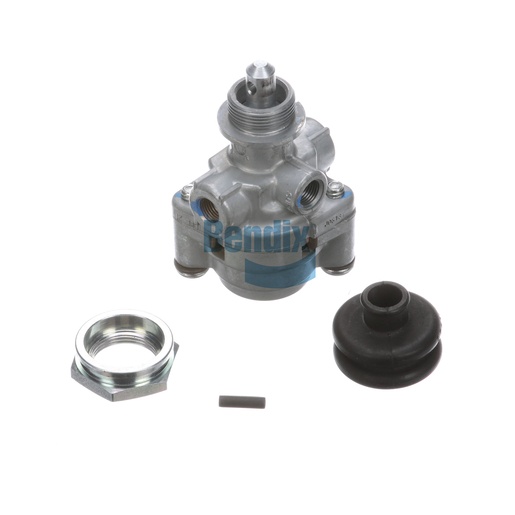

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an essential component in the air brake system, providing precise control of the air supply to ensure optimal braking performance. Designed for durability and reliability, this inversion valve is engineered to withstand the rigors of heavy-duty use and operates effectively in a wide temperature range. Its compact design allows for easy installation in various applications, while its robust construction ensures long-lasting performance. This control valve enhances the overall efficiency of your vehicle's braking system, contributing to improved safety and control. For those seeking top-quality, genuine Bendix OEM parts, Source One Parts Center is the perfect destination.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
109.0 mm (4.29 in)
Maximum Operating Temperature
200 °F (93 °C)
Pilot Trip Pressure
24 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
1.23 lb
