065536

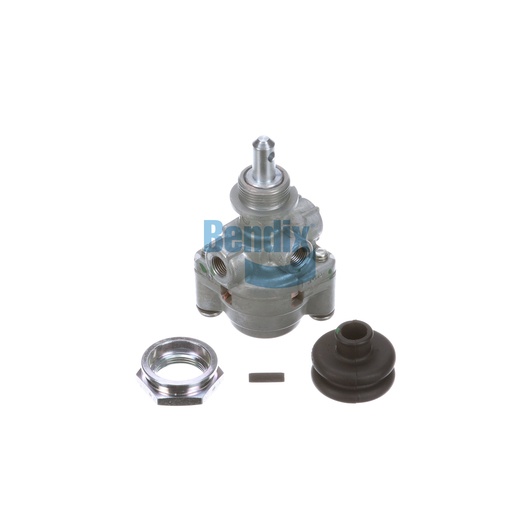

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is an integral component of your vehicle's braking system, designed to regulate air pressure effectively for optimal brake function. This valve, weighing just 0.6 kg, is crafted to withstand the rigors of heavy-duty applications, ensuring reliable performance under pressure. Its innovative design features advanced engineering that allows for precise control of air distribution, enhancing safety and efficiency during operation. The straightforward installation process ensures that downtime is minimal, allowing for quick replacements when necessary. By choosing genuine Bendix OEM parts, you guarantee that your braking system functions at its peak. Source One Parts Center is the best place to purchase genuine Bendix parts, providing you with high-quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
109.0 mm (4.29 in)
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
1.23 lb
