DESCRIPTION

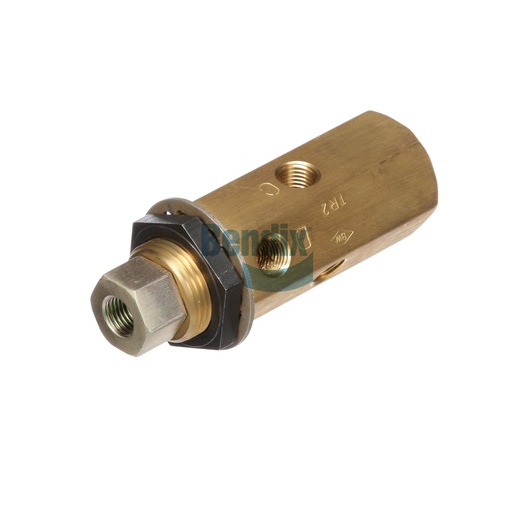

The Bendix Inversion Valve is an essential component for ensuring the effective operation of your truck's air brake system. This high-quality valve is designed to provide reliable performance, allowing for optimal control of brake functions. With a compact design and weighing only 0.9 kg, it is easy to install and maintain, making it an ideal choice for both professional mechanics and DIY enthusiasts. For authentic Bendix OEM parts, Source One Parts Center is the top choice, ensuring you receive the best components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Mounting
1 1/4-12 UNF-2A (Bulkhead)
Control Port 1
1/4-18 NPT
Control Port 2
1/4-18 NPT
Control Port 3
1/4-18 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
117.3 mm (4.62 in)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
40 PSI
Height
49.5 mm (1.95 in)
Width
49.5 mm (1.95 in)
EXH Opening Descending Pressure (Constant SUP / Variable CON)
65 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Weight
2.03 lb
