101126

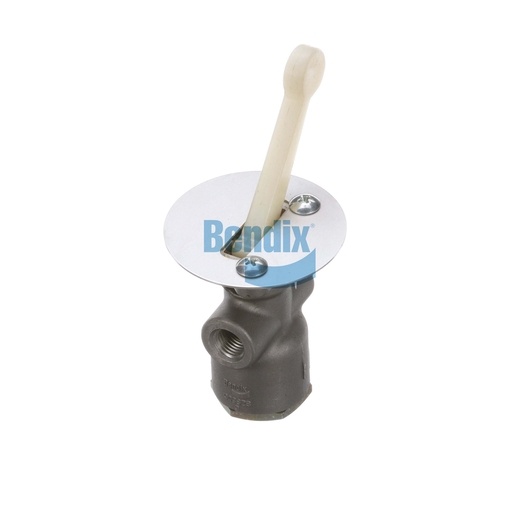

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is an essential component for efficient air management in commercial vehicle braking systems. This advanced valve allows for smooth operation and precise control over air flow, enhancing the responsiveness of the vehicle's braking system. Constructed from durable materials, this control valve is designed to withstand harsh operating conditions, ensuring long-lasting performance and reliability. Its easy installation process makes it a practical choice for fleet managers and individual truck owners alike, contributing to reduced downtime and enhanced safety on the road. With its innovative design and functional versatility, this control valve plays a critical role in maintaining optimal braking performance. For the best in Bendix OEM parts, including this Control Valve, Source One Parts Center is your trusted partner, providing high-quality components for your commercial vehicles.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Port 2
1/4-18 NPT (Plugged)
Height
126.2 mm (4.97 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
63.5 mm (2.5 in)
Total Travel
75°
Length
80.0 mm (3.15 in)
Harmonized System (HS) Code
848120
Dial / Plate Text
Lever Position (Initial)
Away from Exhaust
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Finish
Natural
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.57 lb
