101344

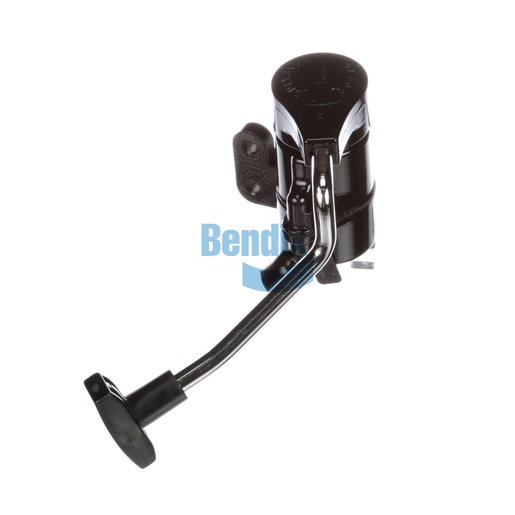

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is a crucial element in ensuring precise control over your trailer's braking system. Designed with functionality in mind, this valve features a self-return mechanism with detent, allowing for straightforward operation and ensuring that your trailer responds accurately to braking commands. Its robust design includes an angled handle for ergonomic access, and with a maximum delivery pressure of 80 PSI, this valve is built to handle the demands of heavy-duty applications. It operates efficiently within a temperature range of -40°F to 200°F, making it suitable for various environmental conditions. The Trailer Control Valve not only enhances the safety of your vehicle but also contributes to optimal braking performance. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, your trusted partner for all commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Total Handle Travel
31°
Graduating Pressure Range
5 - 80 PSI
Mounting
5/16-18 UNC-2B (2x)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Product Type
Self-Return (with Detent)
Handle Material
Steel (Chrome Plated)
Knob / Handle Text
Trailer Brake | Not for Parking
Reverse Cam
Yes
Body Material
Zinc
Weight
2.16 lb
