DESCRIPTION

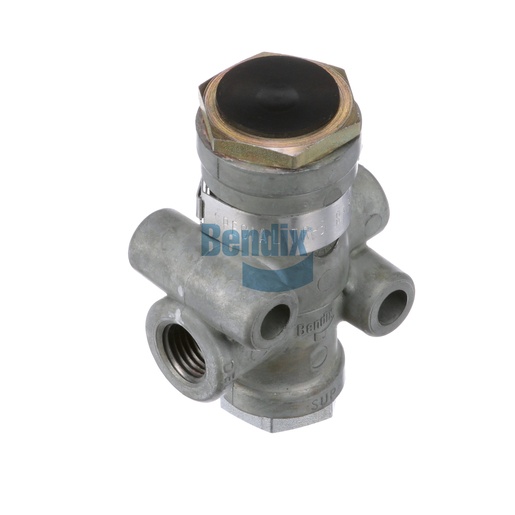

The Inversion Valve from Bendix is an essential part of the air brake system, specifically designed for trailer applications to ensure proper air flow and control. This valve plays a critical role in managing the air supply to the braking system, enhancing overall responsiveness and safety. Manufactured in Mexico, it is built to withstand the demanding conditions of heavy-duty use, ensuring long-lasting performance. With a compact and lightweight design, it is easy to install, making it a practical choice for both mechanics and fleet operators. By integrating this inversion valve into your braking system, you enhance its reliability and functionality, ensuring optimal performance under all conditions. Trust in Bendix for quality and dependability, and rely on Source One Parts Center for genuine Bendix OEM parts to meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
25 PSI
Width
35.1 mm (1.38 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
40 PSI
Length
49.0 mm (1.93 in)
Height
75.4 mm (2.97 in)
Inlet Opening Pressure (Constant SUP / Variable CON)
8 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.55 lb
