101450R

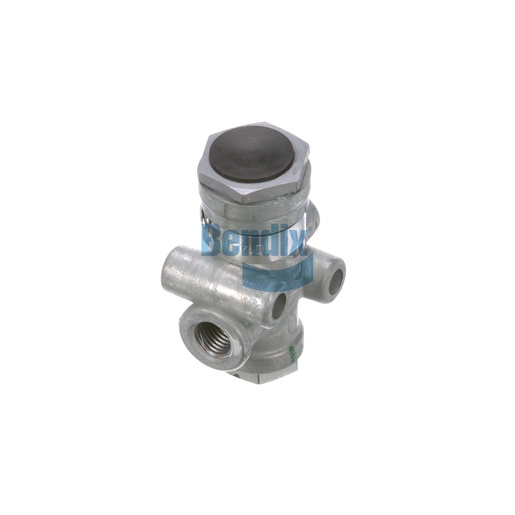

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Inversion Valve is a crucial element in the braking system of your trailer, providing effective control of air flow for optimal brake operation. Designed for durability and precision, this valve features a compact design, weighing just 0.3 kg, making it easy to install without compromising on performance. With a maximum operating temperature of 200°F, it is engineered to withstand various environmental conditions. This inversion valve ensures that your braking system operates smoothly and efficiently, enhancing overall safety on the road. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring you have access to quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
25 PSI
Width
35.1 mm (1.38 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
40 PSI
Length
49.0 mm (1.93 in)
Height
75.4 mm (2.97 in)
Inlet Opening Pressure (Constant SUP / Variable CON)
8 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.55 lb
