101456

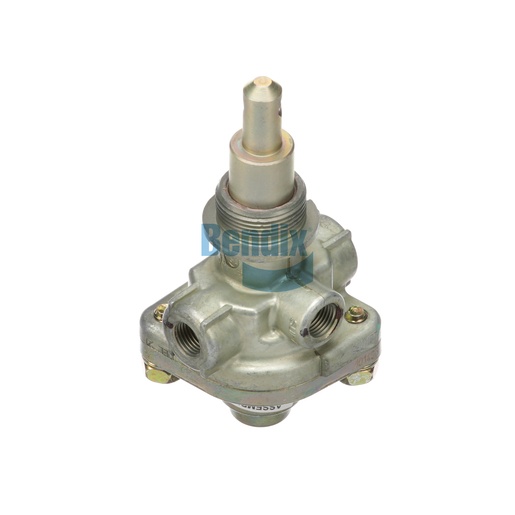

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component in managing the air supply for your vehicle's braking system. This valve is designed for precision control of air flow, providing reliable operation for various braking applications, including parking and service brakes. With its robust construction, the control valve operates effectively even under high-pressure conditions, making it ideal for heavy-duty commercial vehicles. The valve's compact design and straightforward installation process allow for quick replacements, minimizing downtime for your fleet. Offering efficient performance and durability, this control valve is essential for maintaining optimal braking function. For genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, supplying high-quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.66 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
104.4 mm (4.11 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
1.59 lb
