101460

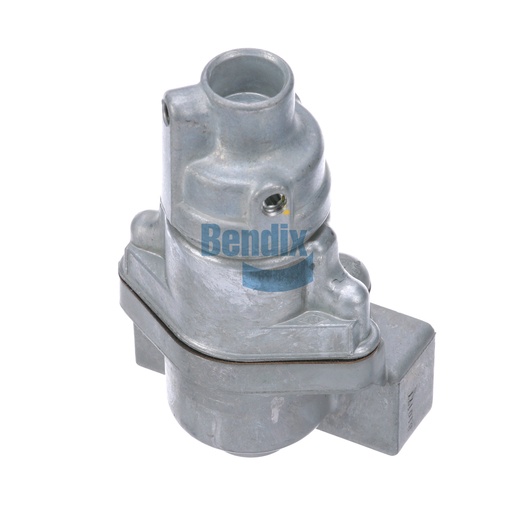

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve plays a crucial role in ensuring that your trailer's braking system responds accurately to driver inputs. This valve is designed for precision control, optimizing the delivery of air to your trailer brakes and enhancing stopping power. Built from durable materials, it stands up to the demands of heavy-duty use, ensuring longevity and reliability. Its straightforward installation process makes it a practical choice for fleet maintenance. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring you receive quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Final Delivery Pressure
125 PSI
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 125 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Positioning
Body Material
Zinc
Weight
2.14 lb
