101781N

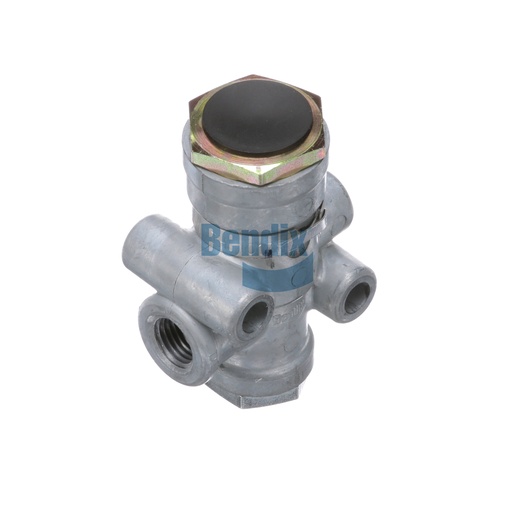

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix inversion valve is a critical component of trailer braking systems, designed to enhance the efficiency and reliability of air-operated brakes. This valve allows for effective control of air supply, ensuring that the braking system responds promptly to driver inputs. Constructed from high-quality materials, it is built to withstand the demands of heavy-duty applications, providing long-lasting performance and durability. Its compact design facilitates easy installation, making it suitable for various commercial vehicles. For sourcing genuine Bendix OEM parts, Source One Parts Center is your go-to destination, known for delivering quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Inlet Opening Descending Pressure (Common CON / SUP)
14 PSI
Exhaust Opening Ascending Pressure (Common CON / SUP)
16 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.55 lb
