$399.95
$479.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

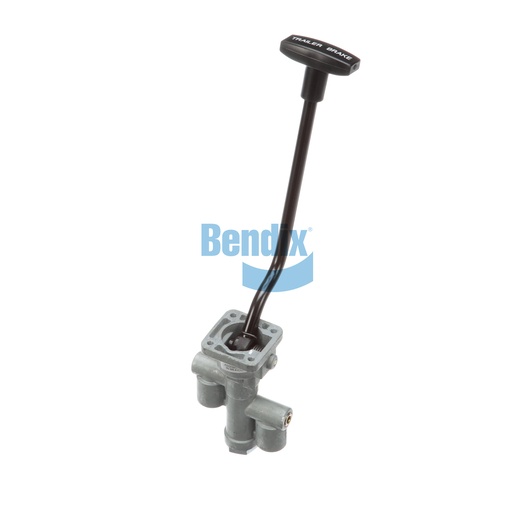

The Trailer Control Valve is an essential part of your vehicle's braking system, allowing for effective management of brake applications. This high-quality valve is designed with precision engineering to ensure reliable performance, even under heavy-duty conditions. Its self-return mechanism guarantees smooth operation, making it easier for drivers to control the braking system effectively. The durable construction means that it can withstand the wear and tear associated with commercial use, leading to fewer replacements and lower maintenance costs. By investing in a top-quality trailer control valve, fleet owners can ensure enhanced safety and performance on the road. When sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal choice, offering authentic components that meet the rigorous demands of commercial vehicles.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 120 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Final Delivery Pressure
120 PSI
Height
131.0 mm (5.16 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
288.0 mm (11.34 in)
Width
73.0 mm (2.87 in)
Total Handle Travel
75°
Harmonized System (HS) Code
848120
Handle Material
Aluminum (Black Epoxy / Laquer)
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Dash Mount
Country of Origin
Mexico
Product Type
Self-Return (without Detent)
Knob / Handle Text
Trailer Brake
Body Material
Zinc
Weight
1.26 lb
