DESCRIPTION

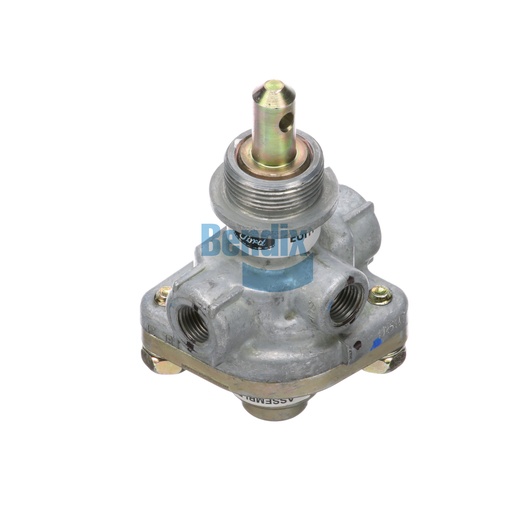

The Control Valve is a key component in your vehicle's air brake system, designed to manage air flow and pressure effectively. This valve features a compact and robust design that ensures reliability, allowing for quick and smooth activation of the braking system. Weighing in at just 0.3 kg, it is lightweight yet built to withstand the rigors of daily use in commercial applications. This valve is engineered to maintain optimal air pressure, enhancing the overall performance of your braking system and ensuring safety on the road. It is compatible with various air brake setups, making it a versatile choice for fleet maintenance and repairs. For all your Bendix OEM parts needs, Source One Parts Center is the best source for quality and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.6 lb
