101910N

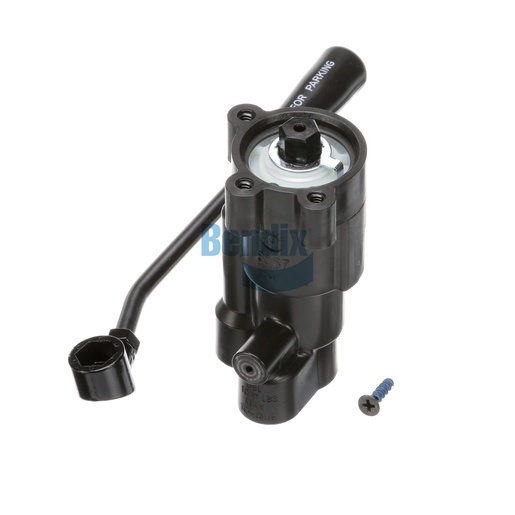

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is essential for precise braking in trailers, providing reliable control over air pressure applied to the brakes. This valve is engineered to optimize the responsiveness of your trailer brakes, ensuring safe and effective stopping power. Constructed from high-quality materials, it offers exceptional durability and resistance to wear, making it suitable for heavy-duty applications. Its user-friendly design simplifies installation and is compatible with a variety of trailer configurations. For those seeking dependable and high-performance components, Source One Parts Center is the premier destination for authentic Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
71°
Harmonized System (HS) Code
848120,818120
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Knob / Handle Text
Not for Parking
Body Material
Plastic
Product Type
Positioning
Final Delivery Pressure
Reservoir
Handle Material
Steel (Black Oxide)
Weight
0.79 lb
