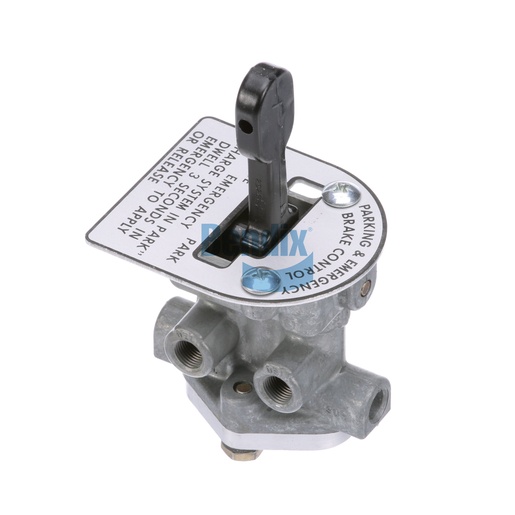

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is an essential part of the trailer braking system, designed to enhance control and safety while driving. This 3-position inversion valve, weighing only 0.4 kg (0.9 lb), provides precise management of air flow throughout the braking system. Its compact size allows for easy installation, while the robust construction ensures durability in demanding conditions. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), this valve is engineered to perform reliably in various environments. The Bendix control valve is crucial for maintaining optimal brake performance and ensuring vehicle safety. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the premier choice, known for quality and reliability.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Supply Port 2
1/8-27 NPT
Supply Port 3
1/8-27 NPT
Supply Port 4
1/8-27 NPT
Total Travel
100°
Height
125.0 mm (4.92 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve (Z-Shift)
Length
63.5 mm (2.5 in)
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Lever Position 1
DEL 1 / DEL 2
Lever Position 3
DEL 1 / EXH 2
Lever Position 2
EXH 1 / DEL 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Dial / Plate Text
Parking & Emergency Brake Control | Release-Park | Emergency
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.9 lb
