102102

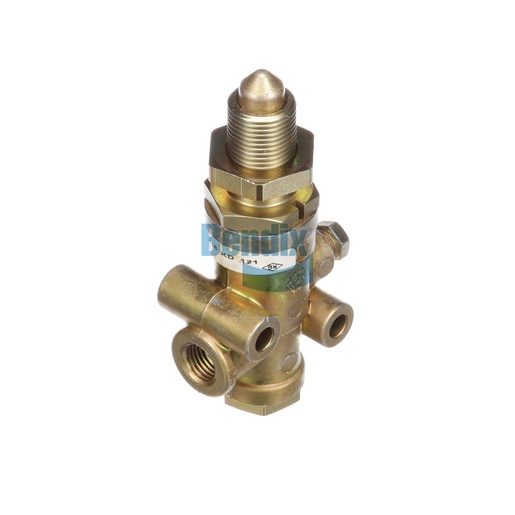

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is an important component for regulating air flow in the braking system of commercial vehicles. This valve is designed for precision control, ensuring that air is delivered reliably to the braking components, enhancing overall braking performance. With a weight of just 0.4 kg, this compact valve is easy to install and maintain, making it an essential part of any air brake system. Its construction is designed to withstand high pressures, ensuring long-lasting performance. For optimal safety and efficiency in your braking system, Source One Parts Center is the best resource for purchasing genuine Bendix OEM parts, guaranteeing superior quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Plunger / Button Height
1.56 IN
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Length
113.3 mm (4.46 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-16 UNF-2A
Width
35.1 mm (1.38 in)
Height
52.1 mm (2.05 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Mounting Nut Included
Yes
Plunger Diameter
Ø .496 IN
Weight
0.93 lb
