102176

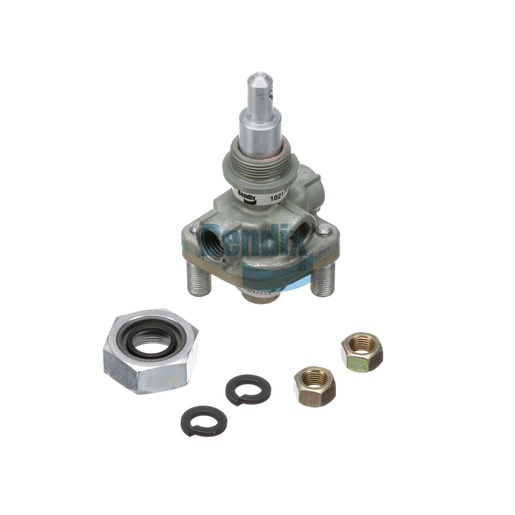

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve plays a vital role in your truck's braking system by managing the flow of air to various brake components, enhancing overall braking efficiency. With its precision engineering and lightweight design of 0.4 kg, this valve is built to withstand the demands of commercial use while ensuring reliable performance. Manufactured in Mexico, the valve is designed for easy installation and maintenance, making it a practical choice for fleet operators. It supports optimal brake function by regulating air pressure, which is crucial for safe stopping power. This part is essential for maintaining the effectiveness of your braking system. When it comes to sourcing Bendix OEM parts, Source One Parts Center is your best resource for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.66 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
104.4 mm (4.11 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
49.8 mm (1.96 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.77 lb
