102258N

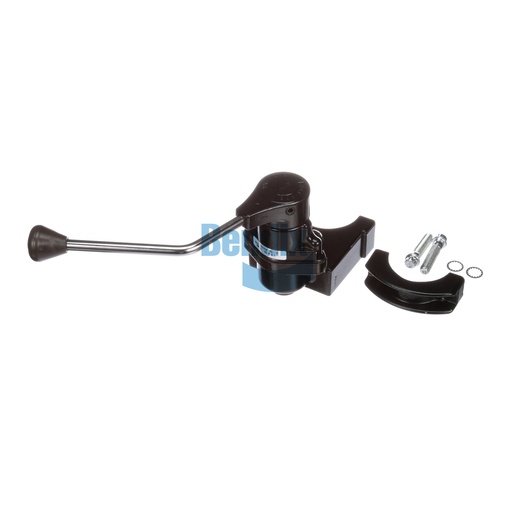

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is an essential component designed to optimize the performance of your vehicle's braking system. This valve allows for precise control over air pressure, ensuring optimal braking efficiency during operation. With a weight of 1.6 kg (3.6 lb), this durable valve is designed to withstand demanding environments and maintain consistent performance. Manufactured in Mexico, it adheres to strict quality standards, providing reliability you can trust. The Bendix Trailer Control Valve is specifically engineered for trailer applications, making it a vital part of your braking system's functionality. By investing in this control valve, you enhance the safety and responsiveness of your vehicle on the road. Source One Parts Center is the best source for purchasing genuine Bendix OEM parts for commercial vehicles, ensuring you receive only the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
27 - 80 PSI
Mounting
3/8-16 UNC-2A Screw (2x)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Handle Shape
Angled
Knob / Handle Color
Brown
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.6 lb
