102308

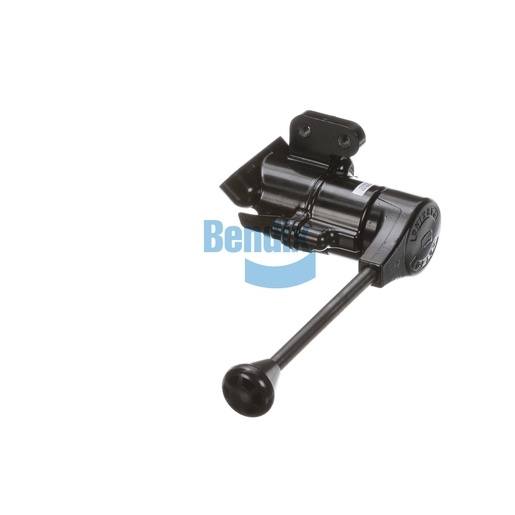

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is an essential component for managing the air supply to the trailer's braking system, providing precise control and responsiveness during operation. This valve is designed for efficiency and reliability, ensuring that air pressure is distributed evenly to the trailer's brakes for optimal stopping power. With its robust construction, it can withstand the demanding conditions of commercial use, while also offering easy installation and integration into existing systems. The valve operates effectively in a wide temperature range, making it suitable for various environments. For fleet managers and operators seeking top-quality components, Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring safety and performance on every journey.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Total Handle Travel
37°
Graduating Pressure Range
5 - 80 PSI
Mounting
5/16-18 UNC-2B (2x)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Body Material
Zinc
Weight
2.12 lb
