$169.95
$203.94
FINAL SALE. No returns or exchanges.

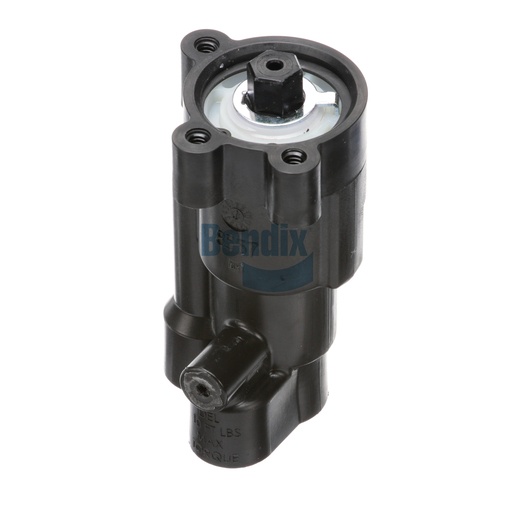

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is designed to enhance the functionality of your commercial vehicle's braking system by providing precise control over the air supply to the trailer brakes. This valve is engineered for reliability and efficiency, allowing for smooth and responsive braking performance. With a lightweight design and robust construction, it ensures optimal operation even under high-pressure conditions. The Trailer Control Valve is crucial for maintaining safety and control while navigating various driving conditions. For those in need of genuine Bendix parts, Source One Parts Center offers the best selection of high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
71°
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Final Delivery Pressure
Reservoir
Product Type
Self-Return (without Detent)
Weight
0.46 lb
