102664
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

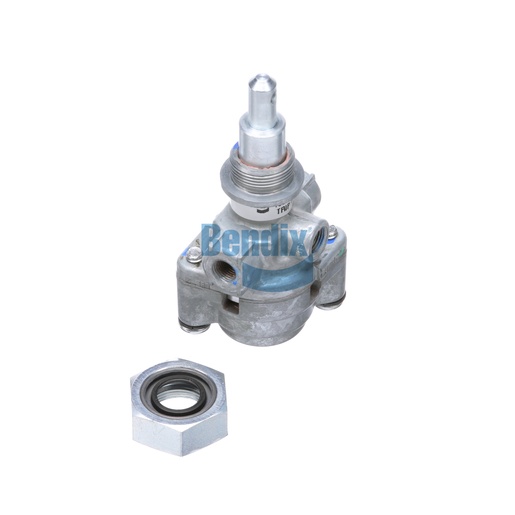

The Bendix Control Valve is engineered to optimize the air braking system of your commercial vehicle, ensuring safety and efficiency on the road. This valve features a durable construction with a plunger diameter of 0.374 inches and operates effectively within a temperature range of -40°F to 200°F. Designed for easy installation, it includes mounting hardware and is compatible with various air supply setups. The valve's pilot trip pressure of 18 PSI and automatic release pressure of 40 PSI provide a responsive braking experience, crucial for heavy-duty applications. With ports that support multiple configurations, this control valve enhances the flexibility of your braking system. Investing in quality components like the Bendix Control Valve is essential for maintaining the integrity of your vehicle's braking system, and Source One Parts Center is the premier destination for authentic Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.65 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
112.5 mm (4.43 in)
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.93 lb
