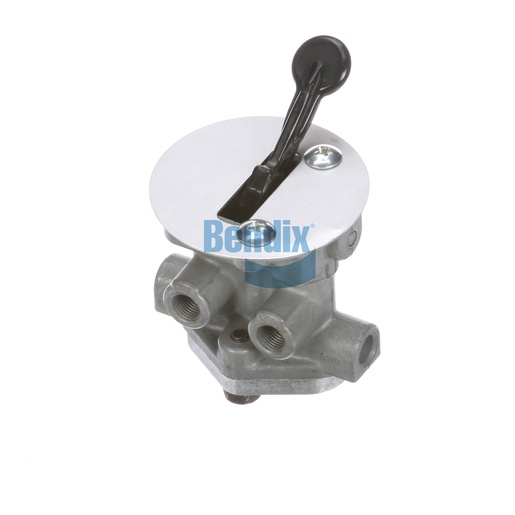

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component that enhances the efficiency of your trailer's braking system. This 3-position valve allows for precise control of air flow, ensuring optimal performance of the braking system under various conditions. With a maximum operating temperature of 200°F and a minimum of -40°F, it is designed to operate effectively in extreme environments. The actuator style is a flipper, providing a user-friendly experience for operators. Its compact design, with a net weight of 0.4 kg, makes it easy to install without taking up unnecessary space in your vehicle. This control valve is a must-have for ensuring your trailer operates safely and efficiently. For all your Bendix OEM parts, Source One Parts Center is the best choice, offering authentic products that meet the highest standards of quality.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 3
1/8-27 NPT
Supply Port 4
1/8-27 NPT (Plugged)
Total Travel
100°
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
63.5 mm (2.5 in)
Width
69.1 mm (2.72 in)
Harmonized System (HS) Code
848120
Dial / Plate Text
Actuator Finish
Black
Supply Port 1
Closed Port
Supply Port 2
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.79 lb
