103756

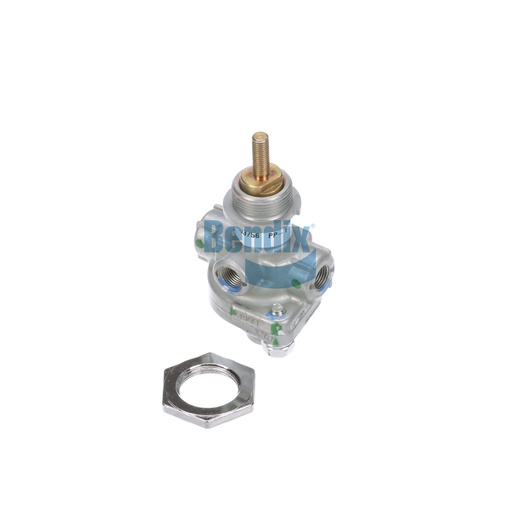

Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a crucial component for regulating air pressure in trailer braking systems, ensuring responsive and reliable braking performance. Designed for heavy-duty applications, this valve features a compact design with precise engineering that allows for smooth operation and quick response times. With a weight of 0.3 kg, it is lightweight yet robust enough to handle the demands of the road. This valve plays a vital role in maintaining optimal brake pressure, enhancing vehicle safety and control during operation. For those seeking the best in commercial truck parts, Source One Parts Center is your go-to source for genuine Bendix OEM components that are built to last.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.18 IN
Plunger Diameter
1/4-28 UNF-2A
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
92.2 mm (3.63 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Mounting Nut Included
Yes
Weight
0.64 lb
