103792N

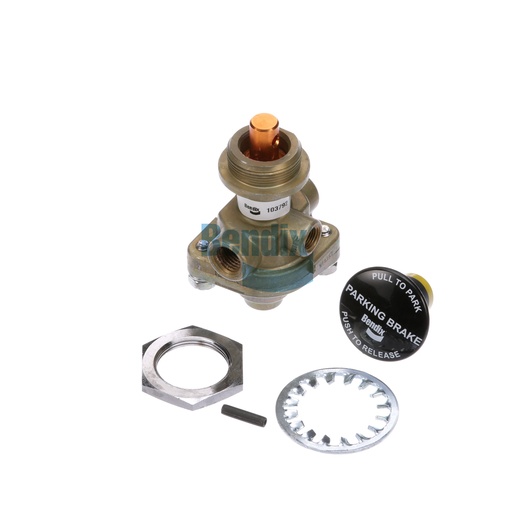

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component in your truck's braking system, ensuring that air flow is managed efficiently for optimal brake performance. Weighing just 0.3 kg, this valve is designed to be compact yet robust, providing reliable operation even under demanding conditions. Its precise engineering allows for quick response times, enhancing the overall safety and efficiency of your braking system. Built to meet or exceed industry standards, this control valve is a smart investment for any commercial vehicle. For high-quality Bendix OEM parts, Source One Parts Center is the trusted choice, ensuring you get the best for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1 1/8-20 UNEF-2A
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
50.8 mm (2.0 in)
Height
66.0 mm (2.6 in)
Harmonized System (HS) Code
848120
Length
97.3 mm (3.83 in)
Button Color
Black (Yellow Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .436 IN
Weight
0.6 lb
