$179.95
$215.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

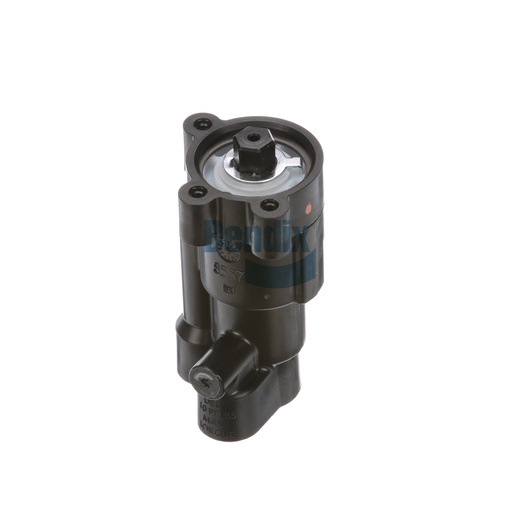

The Bendix Trailer Control Valve is a vital component for managing air supply to trailer brakes, enhancing vehicle safety and control during operation. This valve is designed for easy installation and features a robust plastic body that withstands the rigors of heavy-duty use. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it is suitable for various environmental conditions. The valve operates with a self-return mechanism, ensuring that it responds quickly and accurately to driver inputs, which is crucial for effective braking performance. This component is compatible with a range of trailer systems, making it an essential addition for fleet operators looking to optimize their equipment's braking capabilities. Investing in this high-quality trailer control valve means prioritizing safety and reliability on the road. Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring that your commercial vehicle is equipped with the best components available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Length
122.0 mm (4.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
204.0 mm (8.03 in)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
71° CW
Height
76.0 mm (2.99 in)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Self-Return (without Detent)
Weight
0.46 lb
