104020

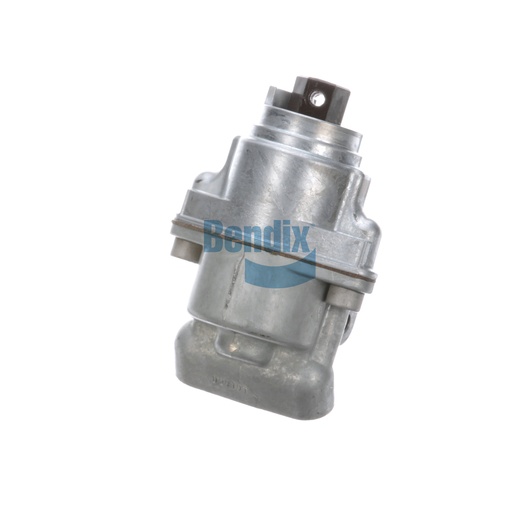

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix trailer control valve is designed to provide precise control over your vehicle's braking system, ensuring safety and efficiency during operation. Lightweight at 0.8 kg, this valve is constructed from high-quality materials, offering durability and reliable performance even under demanding conditions. Its self-return feature and effective port configurations allow for smooth operation and quick response times, essential for maintaining control while towing. This valve is engineered to meet the rigorous demands of heavy-duty applications, making it a trusted choice for fleet operators. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center is the leading destination, ensuring quality and reliability in every component.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Mounting
5/16-18 UNC-2B (2x)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
1.68 lb
