104087

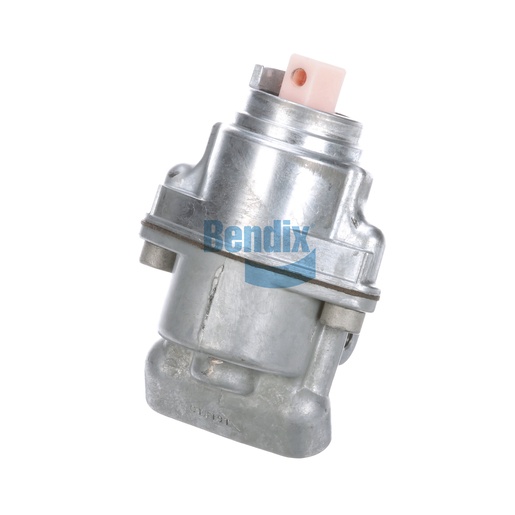

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is engineered for precision and reliability in air brake systems. This self-return valve features a robust zinc body, designed to endure the rigors of commercial use while maintaining consistent performance. With a graduating pressure range of 5 to 80 PSI, it allows for optimal control over braking applications. The valve's thoughtful design facilitates easy installation at various mounting locations, reducing service time and enhancing overall efficiency. Weighing only 0.7 kg, it’s lightweight yet durable, making it an essential component for any fleet. Opting for this genuine Bendix OEM part ensures your braking system operates smoothly and effectively. Source One Parts Center is your go-to destination for high-quality Bendix parts, ensuring you get the best for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Mounting
5/16-18 UNC-2B (2x)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
1.48 lb
