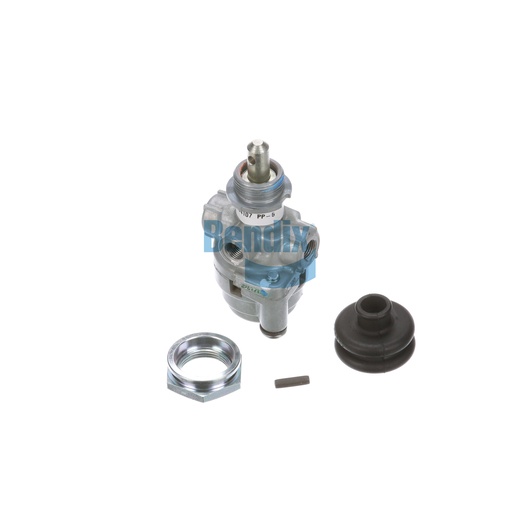

104107N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a key component for managing trailer braking systems, offering precise control and reliability. Weighing just 0.4 kg (0.85 lb), this valve features a robust design that withstands the demands of heavy-duty applications while providing consistent performance. Its compact size allows for easy installation and integration into existing systems, making it a versatile choice for various commercial vehicles. The valve's ability to manage airflow effectively contributes to the overall efficiency and safety of your braking system, ensuring that you can rely on it in critical situations. By choosing the Bendix Control Valve, you are investing in a part designed for durability and reliability. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Pilot Trip Pressure
24 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Exhaust Port
Vent
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.85 lb
