104240N

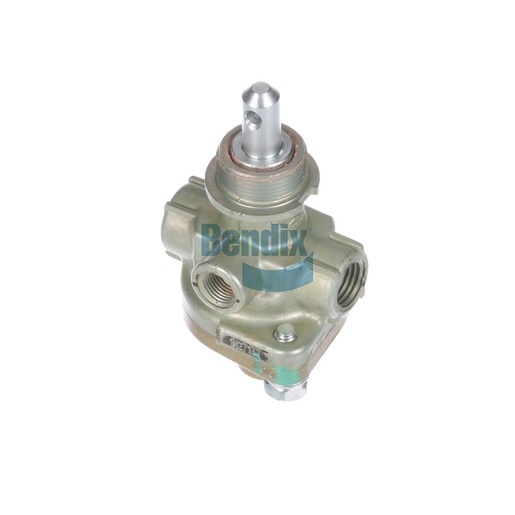

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a key component in the braking system, specifically designed to manage the air supply effectively for optimal braking performance. This valve is engineered to ensure precise airflow, enhancing the responsiveness of your trailer brakes, which is essential for maintaining safety and control while driving. Constructed to endure harsh conditions, it features a reliable design that promises durability and longevity. The Control Valve is easy to install, making it a practical choice for fleet operators looking to minimize downtime. With its ability to improve brake functionality, this valve is crucial for any heavy-duty vehicle. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, guaranteeing high-quality components for your commercial vehicle systems.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.55 lb
