$184.95
$221.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

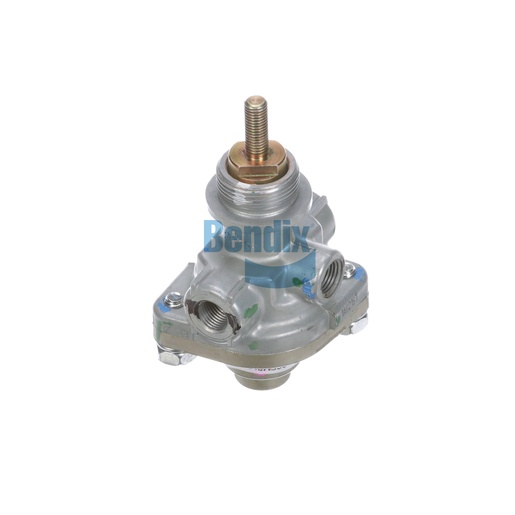

The Bendix Control Valve is an essential part of your vehicle's braking system, designed for optimal performance and reliability. With its lightweight design of only 0.3 kg, this valve plays a crucial role in controlling air flow between the brake components, ensuring precise braking action in all driving conditions. Engineered to meet rigorous industry standards, it offers durability and long-lasting performance, making it an ideal choice for heavy-duty applications. The valve features multiple ports for efficient air management, providing a smoother and safer driving experience. For the best selection of genuine Bendix OEM parts, trust Source One Parts Center to deliver quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.5 mm (1.99 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.4 mm (3.6 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
